- Capacity:
- Machine screw: M4 – M8 (5/32 – 5/16″)
- Standard Bolt: M5 – M16 (3/16 – 5/8″)
- High Strength Bolt: M5 – M14 (3/16 – 9/16″)
- Coarse thread (in length): 22 – 125 mm (7/8 – 4-7/8″)
- Steel: 22 mm (7/8″)
- Wood (Auger Bit): 24 mm (15/16″)
- Hex Shank: 6.35 mm (1/4″)
- No Load Speed (rpm):
- Max / Hard / Med. / Soft: 0 – 3,600 / 0 – 3,200 / 0 – 2,100 / 0 – 1,100 minˉ¹
- Impacts Per Minute (IPM):
- Max / Hard / Med. / Soft: 0 – 3,800 / 0 – 3,600 / 0 – 2,600 / 0 – 1,100 minˉ¹
- Max. fastening torque: 180 N·m (1,590 in.lbs.)
- Dimensions (L x W x H): 111 x 81 x 234 mm (4-3/8 x 3-3/16 x 9-1/4″)
- Net weight: 1.5 kg (3.3 lbs.)

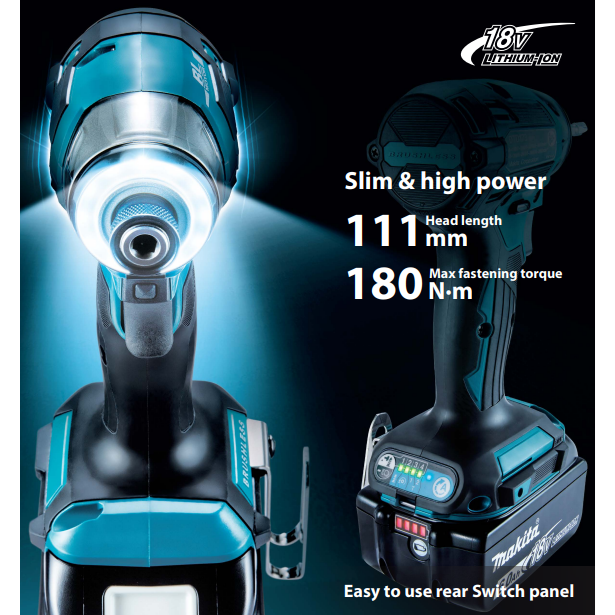

Makita DTD173, 18V LXT Cordless Impact Driver Brushless 1/4″ Hex Shank [DTD173RTJ | DTD173RFJ | DTD173Z]
About the Product
- 18V LXT BL Cordless Wood/Bolt/T-Mode 180 N·m (1,590 in.lbs.) Impact Driver
- Slimmer tool head that enables easy screw-driving in tight corners or confined spaces
- Slimmer tool body due to smaller controller circuit
- Light mode enables to use as a handy light on dark job sites
- 4-stage impact power selection
- Compact design with an overall length of 111mm
Standard Equipment
- Hook, Hand strap, Phillips bit
Standard Accessories
- DTD173RFJ: Rapid Charger (DC18RC), 2 x 18V – 3.0Ah Batteries (BL1830B), Makpac
- DTD173RTE: Rapid Charger (DC18RC), 2 x 18V – 5.0Ah Batteries (BL1850B)
- DTD173Z: Bare Tool (Battery and charger sold separately)
